EASYFIT 2.0

Easyfit 2.0 trim recessed linear light

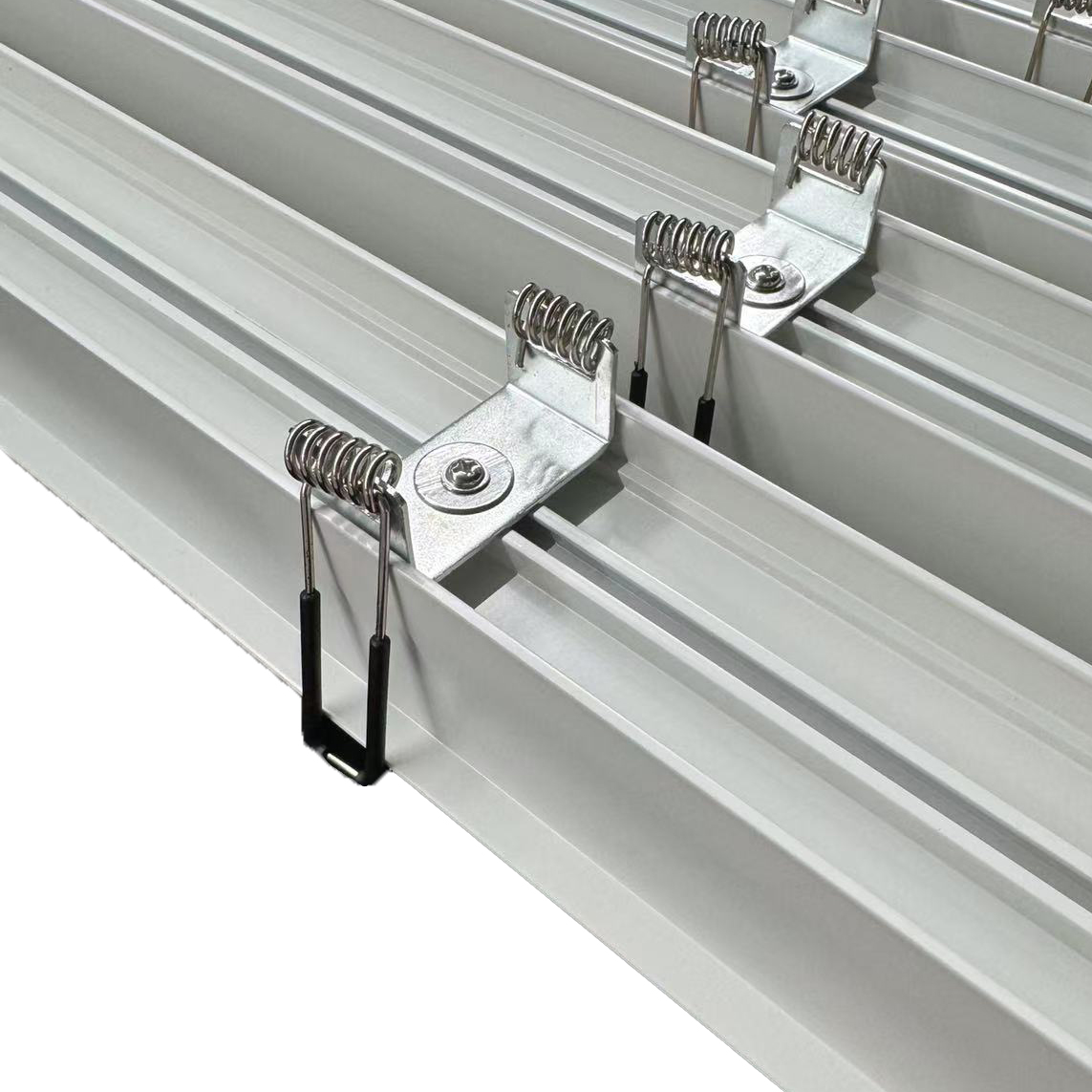

1) With springs at back and trim at frontage
2) Flexible driver solution,both plastic & metal workable
3) Opal / Microprismatic diffuser optional
4) Safety cable able to add if wanted

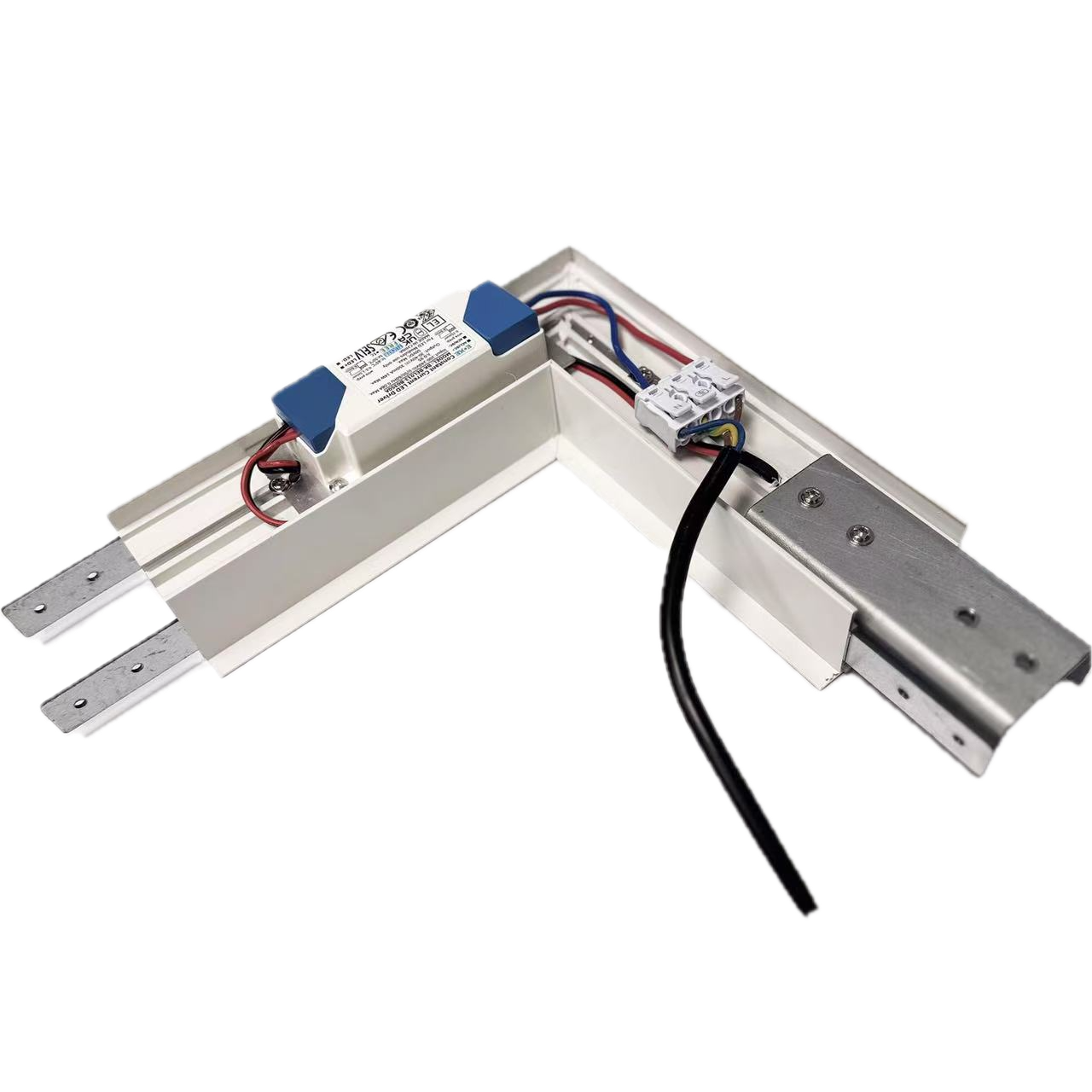

5) L,X,T connectors workable for possible connecting
6) Single color,CCT dial switchable,Tunable white available
7) On/off,1-10V/DALI 2.0 dimmable available as requested

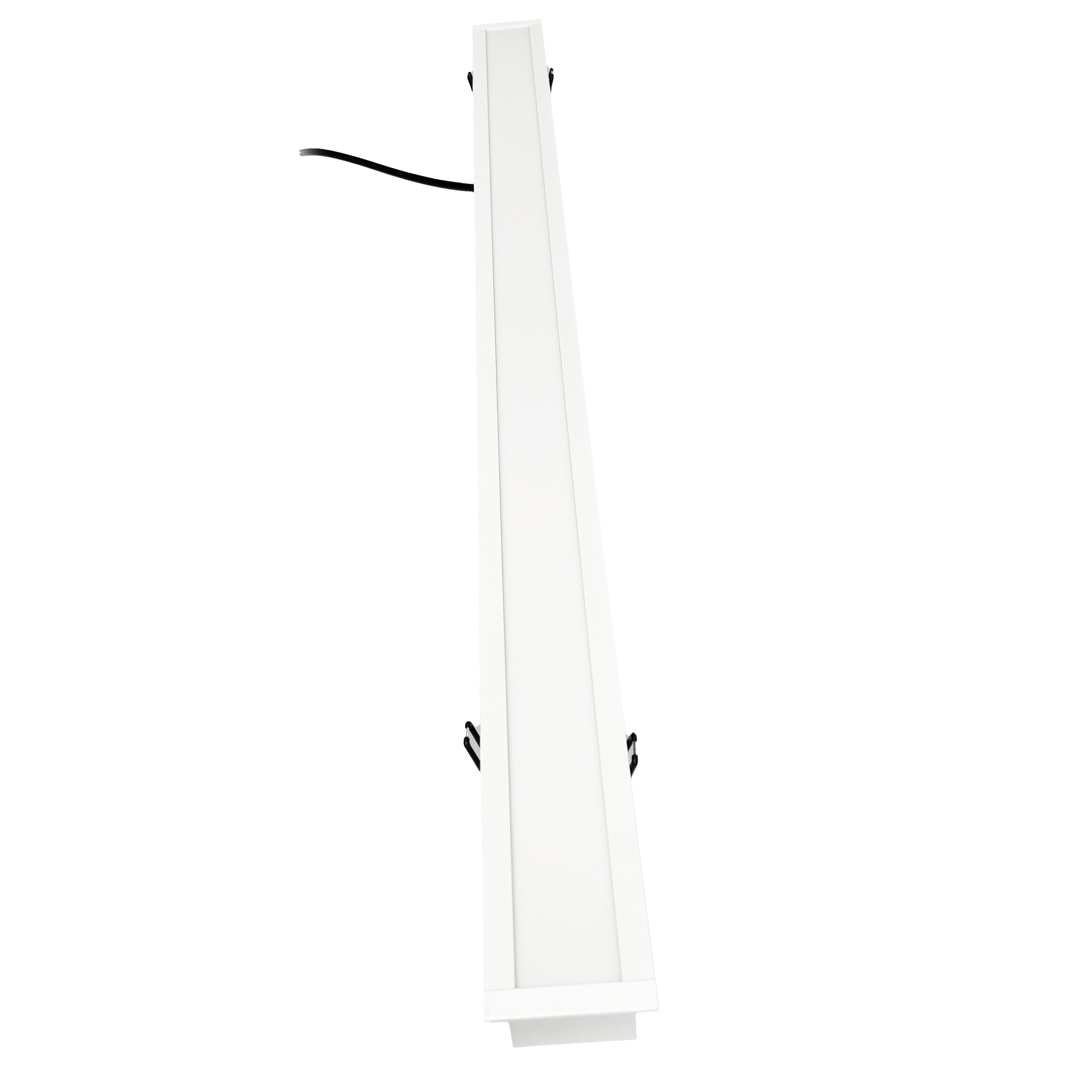

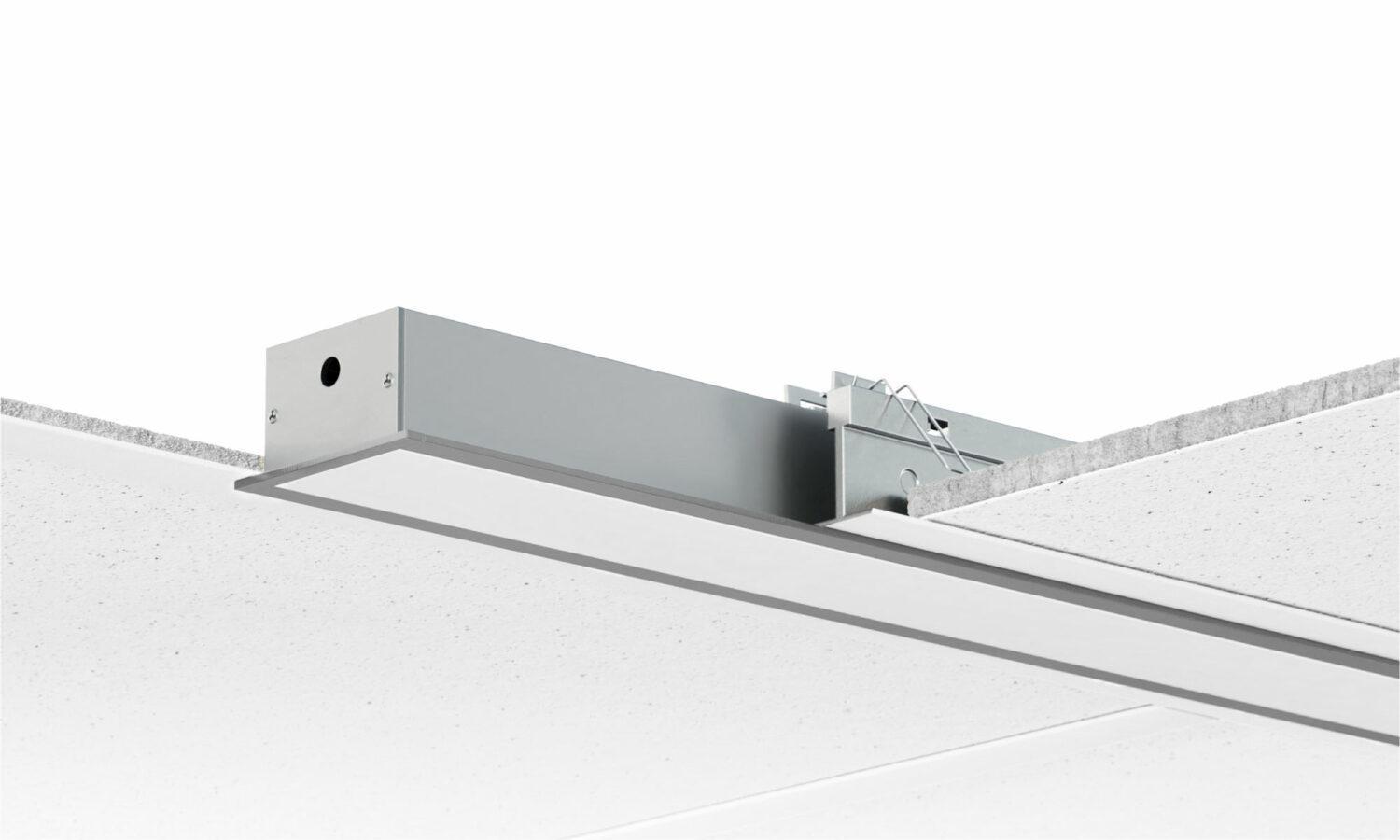

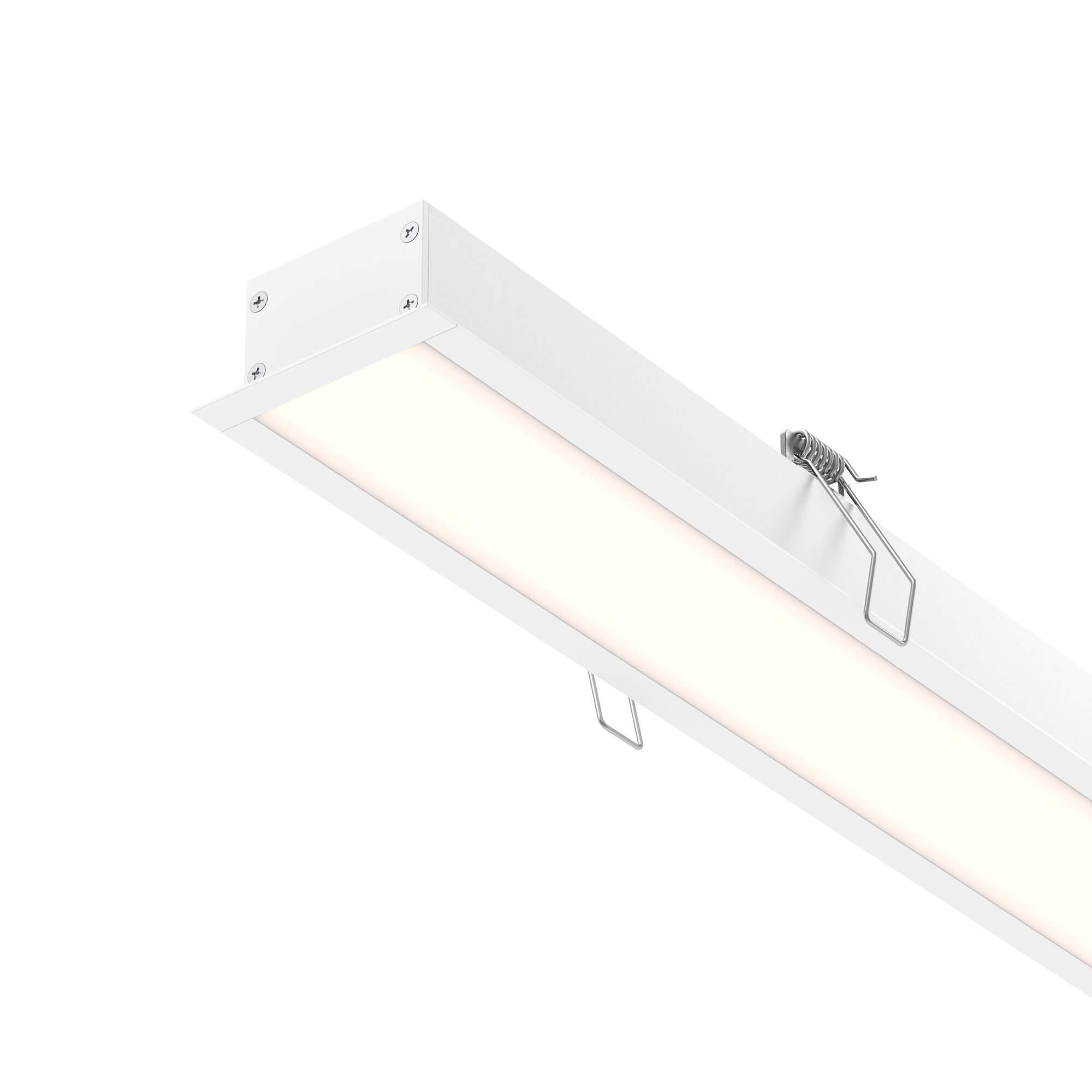

Easyfit 2.0 is a kind of trim recessed linear light.

With trim at frontage & recessed springs at back.

Thanks to the external driver solution,driver can be plastic or metal solution to power Easyfit 2.0.

1) Single color version

Model no.	Inner dimension	Power	Efficiency	CRI	CCT	Optic	Beam angle
EF2-1200-30W-840	L1200W50H38mm	30W	120lm/W	>80	4000K	Opal/Micro-prismatic	100-120°
EF2-1500-40W-840	L1500W50H38mm	40W	120lm/W	>80	4000K	Opal/Micro-prismatic	100-120°
EF2-600-15W-840	L600W50H38mm	15W	120lm/W	>80	4000K	Opal/Micro-prismatic	100-120°

2) Color switchable version

Model no.	Inner dimension	Power	Efficiency	CRI	CCT	Optic	Beam angle
EF2-1200-30W-8CS	L1200W50H38mm	30W	120lm/W	>80	3000K/4000K dial switchable	Opal/Micro-prismatic	100-120°
EF2-1500-40W-8CS	L1500W50H38mm	40W	120lm/W	>80	3000K/4000K dial switchable	Opal/Micro-prismatic	100-120°
EF2-600-15W-8CS	L600W50H38mm	15W	120lm/W	>80	3000K/4000K dial switchable	Opal/Micro-prismatic	100-120°

3) Tunable white version

Model no.	Inner dimension	Power	Efficiency	CRI	CCT	Optic	Beam angle
EF2-1200-30W-8TW	L1200W50H38mm	30W	120lm/W	>80	2700K-6500K tunable white	Opal/Micro-prismatic	100-120°
EF2-1500-40W-8TW	L1500W50H38mm	40W	120lm/W	>80	2700K-6500K tunable white	Opal/Micro-prismatic	100-120°
EF2-600-15W-8TW	L600W50H38mm	15W	120lm/W	>80	2700K-6500K tunable white	Opal/Micro-prismatic	100-120°
