EASYFIT 3.0

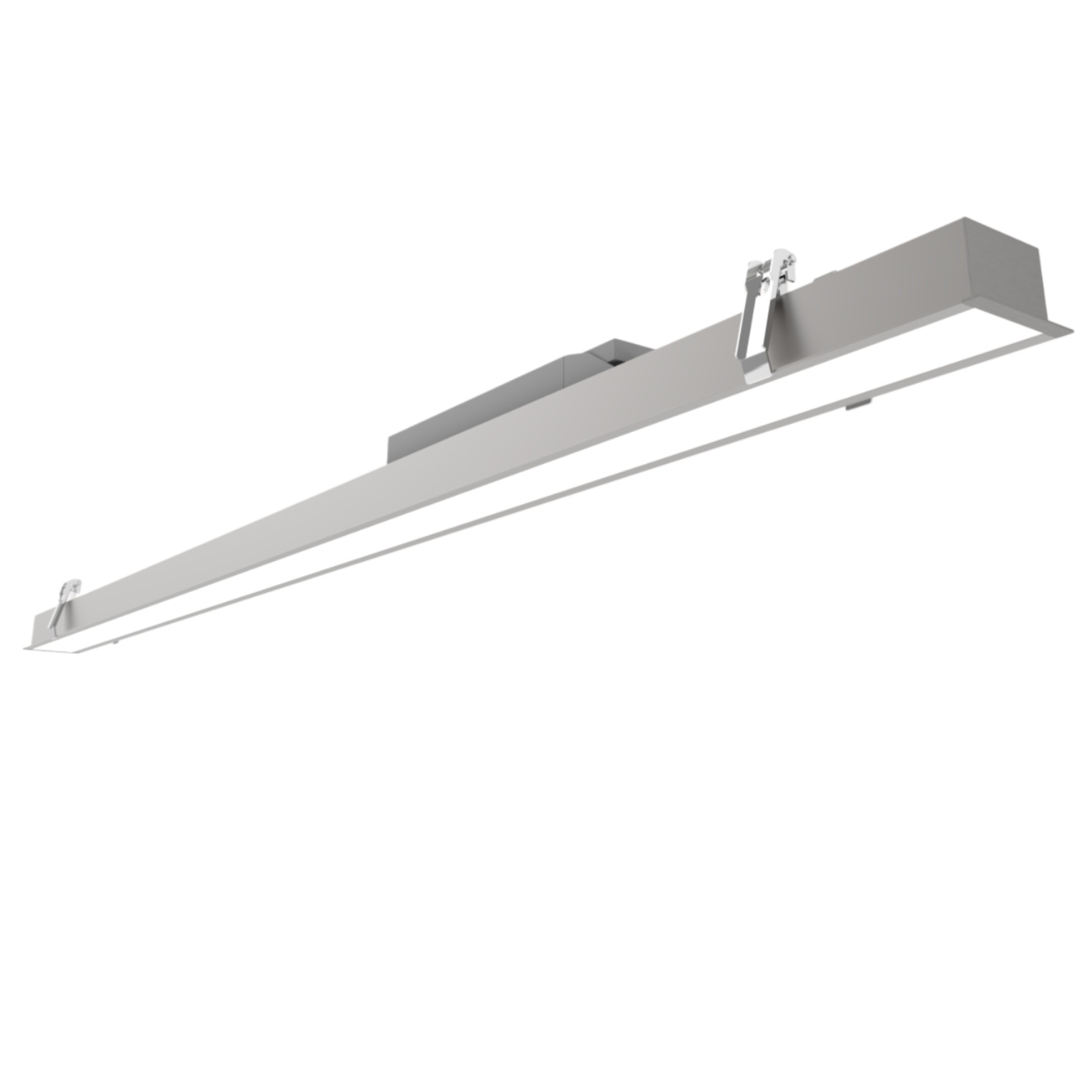

Easyfit 3.0 trim recessed linear light
1) With springs at back and trim at frontage
2) Flexible driver solution,both plastic & metal workable
3) Opal / Microprismatic diffuser optional
4) Safety cable able to add if wanted
5) L,X,T connectors workable for possible connecting
6) Single color,CCT dial switchable,Tunable white available
7) On/off,1-10V/DALI 2.0 dimmable available as requested

EASYFIT 3.0 is another series of trim recessed linear light with another inner & outer dimension.

Three typical versions available as follows:

1) Single color version

Model no.	Inner dimension	Power	Efficiency	CRI	CCT	Optic	Beam angle
EF3-1200-30W-840	L1200W44H37mm	30W	120lm/W	>80	4000K	Opal/Micro-prismatic	100-120°
EF3-1500-40W-840	L1500W44H37mm	40W	120lm/W	>80	4000K	Opal/Micro-prismatic	100-120°
EF3-600-15W-840	L600W44H37mm	15W	120lm/W	>80	4000K	Opal/Micro-prismatic	100-120°

2) Color switchable version

Model no.	Inner dimension	Power	Efficiency	CRI	CCT	Optic	Beam angle
EF3-1200-30W-8CS	L1200W44H37mm	30W	120lm/W	>80	3000K/4000K dial switchable	Opal/Micro-prismatic	100-120°
EF3-1500-40W-8CS	L1500W44H37mm	40W	120lm/W	>80	3000K/4000K dial switchable	Opal/Micro-prismatic	100-120°
EF3-600-15W-8CS	L600W44H37mm	15W	120lm/W	>80	3000K/4000K dial switchable	Opal/Micro-prismatic	100-120°

3) Tunable white version

Model no.	Inner dimension	Power	Efficiency	CRI	CCT	Optic	Beam angle
EF3-1200-30W-8TW	L1200W44H37mm	30W	120lm/W	>80	2700K-6500K tunable white	Opal/Micro-prismatic	100-120°
EF3-1500-40W-8TW	L1500W44H37mm	40W	120lm/W	>80	2700K-6500K tunable white	Opal/Micro-prismatic	100-120°
EF3-600-15W-8TW	L600W44H37mm	15W	120lm/W	>80	2700K-6500K tunable white	Opal/Micro-prismatic	100-120°
