Product Introduction
CIRCLE 1.0

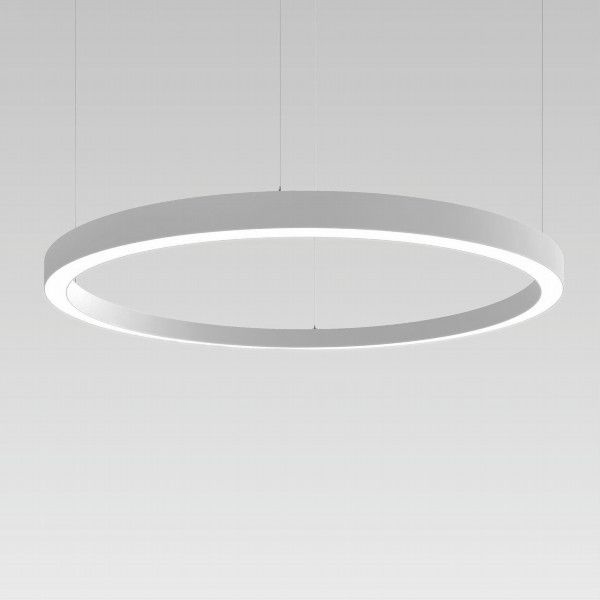

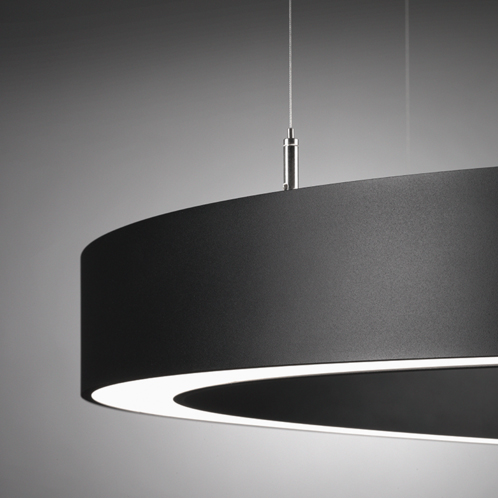

CIRCLE 1.0 ring linear light
1) Cross-section size W50*75mm
2) φ600/900/1200/1500mm available
3) Internal or External driver optional
4) Single color,CCT dial switchable,Tunable white available
5) Wiring box available to order to match CIRCLE 1.0
6) Single color,CCT dial switchable,Tunable white available
7) On/off,1-10V/DALI dimmable available for options


1) Single color version

Model no.Inner dimensionPowerEfficiencyCRICCTOpticPainting
CC1-Φ600-36W-840φ600*75mm36W115lm/W>804000KOpal/Micro-prismaticBlack/White
CC1-Φ900-60W-840
φ900*75mm
60W115lm/W
>80
4000K
Opal/Micro-prismatic
Black/White
CC1-Φ1200-75W-840
φ1200*75mm
75W115lm/W
>80
4000K
Opal/Micro-prismatic
Black/White
CC1-Φ1500-90W-840
φ1500*75mm
90W115lm/W
>80
4000K
Opal/Micro-prismatic
Black/White


2) Color switchable version

Model no.Inner dimensionPowerEfficiencyCRICCTOpticPainting
CC1-Φ600-36W-8CS
φ600*75mm
36W
115lm/W
>803000K/4000K dial switchableOpal/Micro-prismaticBlack/White
CC1-Φ900-60W-8CS
φ900*75mm
60W
115lm/W
>80
3000K/4000K dial switchable
Opal/Micro-prismatic
Black/White
CC1-Φ1200-75W-8CS
φ1200*75mm
75W
115lm/W
>80
3000K/4000K dial switchable
Opal/Micro-prismatic
Black/White
CC1-Φ1500-90W-8CS
φ1500*75mm
90W
115lm/W
>80
3000K/4000K dial switchable
Opal/Micro-prismatic
Black/White


3) Tunable white version

Model no.Inner dimensionPowerEfficiencyCRICCTOpticPainting
CC1-Φ600-36W-8TW
φ600*75mm
36W
115lm/W
>802700K-6500K Tunable whiteOpal/Micro-prismaticBlack/White
CC1-Φ900-60W-8TW
φ900*75mm
60W
115lm/W
>80
2700K-6500K Tunable white
Opal/Micro-prismatic
Black/White
CC1-Φ1200-75W-8TW
φ1200*75mm
75W
115lm/W
>80
2700K-6500K Tunable white
Opal/Micro-prismatic
Black/White
CC1-Φ1500-90W-8TW
φ1500*75mm
90W
115lm/W
>80
2700K-6500K Tunable white
Opal/Micro-prismatic
Black/White
